- Cell specifications: 8 strings of lithium iron batteries
- Interface type: Charge and discharge are both at the same port
- charging voltage: 3.6V*Number of strings
- Cell voltage range: 2.0~3.75V
- Continuous charging current: 10A
- Continuous discharging current: 20A
- Consumption of running: ≤50uA
-Circuit resistance: ≤20mR - Operating temperature: -30°C-75°C8S 20AMP JBD BMS HP16SA is a Hardware protection board scheme specially designed for 4 -16 strings of lithium battery packs. The protection parameters are fixed by the component parameters. BMS The protection board should be stored in a clean and well-ventilated warehouse with an ambient temperature of -5°C +40°C, a relative humidity of not more than 70%, and the air must not contain corrosive gases and media that affect electrical insulation, and must not be affected by any mechanical Shock or heavy pressure. Not subject to direct sunlight, and the distance from the heat source (heating equipment, etc.) should not be less than 2m. Under the above storage conditions, the BMS protection board can be stored for one year.
- 8S 20AMP

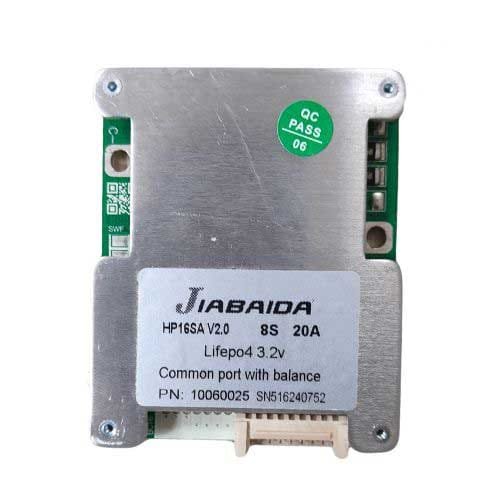

8S 20AMP JBD BMS LFP Hardware (HP16SA)
₹850.00
8S 20AMP JBD BMS HP16SA is a Hardware protection board scheme specially designed for 4 -16 strings of lithium battery packs. The protection parameters are fixed by the component parameters. BMS The protection board should be stored in a clean and well-ventilated warehouse with an ambient temperature of -5°C +40°C, a relative humidity of not more than 70%, and the air must not contain corrosive gases and media that affect electrical insulation, and must not be affected by any mechanical Shock or heavy pressure. Not subject to direct sunlight, and the distance from the heat source (heating equipment, etc.) should not be less than 2m. Under the above storage conditions, the BMS protection board can be stored for one year.
Description
