₹1,120.00

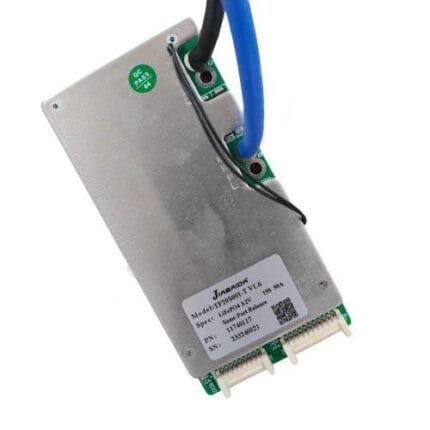

11S 20AMP JBD BMS HP16SA is a Hardware protection board scheme specially designed for 4 -16 strings of lithium battery packs. The protection parameters are fixed by the component parameters. BMS The protection board should be stored in a clean and well-ventilated warehouse with an ambient temperature of -5°C +40°C, a relative humidity of not more than 70%, and the air must not contain corrosive gases and media that affect electrical insulation, and must not be affected by any mechanical Shock or heavy pressure. Not subject to direct sunlight, and the distance from the heat source (heating equipment, etc.) should not be less than 2m. Under the above storage conditions, the BMS protection board can be stored for one year.
11S 20AMP
Cell specifications: 11 strings of lithium iron batteries
Interface type: Charge and discharge are both at the same port
charging voltage: 3.6V*Number of strings
Cell voltage range: 2.0~3.75V
Continuous charging current: current): 10A
Continuous discharging current: 20A
Consumption of running: ≤50uA
-Circuit resistance: ≤20mR
Operating temperature: -30°C-75°C
