- Cell specifications: 8 strings of lithium iron batteries
- Interface type: Charge and discharge are both at the same port
- charging voltage: 3.6V*Number of strings
- Cell voltage range: 2.0~3.75V
- Continuous charging current: 20A
- Continuous discharging current: 40A
- Consumption of running: ≤50uA
-Circuit resistance: ≤20mR - Operating temperature: -30°C-75°CThe 8S 40A BMS LFP JBD (HP08S001) is a Battery Management System (BMS) designed for 8 series lithium iron phosphate (LiFePO4) battery packs, supporting a 40A continuous discharge current. It is suitable for moderate power applications such as small electric vehicles, energy storage systems, and backup power solutions. The 8S 40A BMS LFP JBD offers comprehensive protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and efficient operation of the battery. Additionally, the HP08S001 model includes cell balancing to maintain consistent voltage across all cells, optimizing battery performance and extending its lifespan.

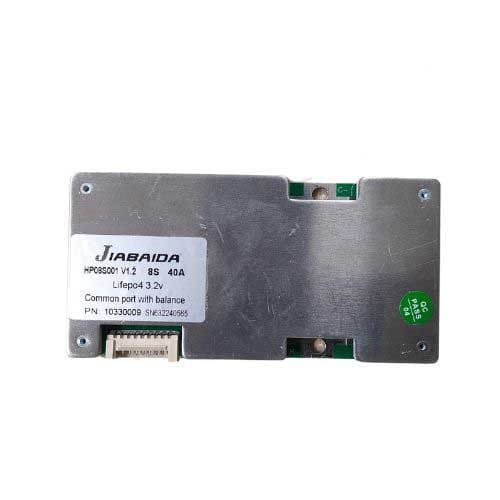

8S 40A BMS LFP JBD (HP08S001) (74c4)
₹1,200.00
The 8S 40A BMS LFP JBD (HP08S001) is a Battery Management System (BMS) designed for 8 series lithium iron phosphate (LiFePO4) battery packs, supporting a 40A continuous discharge current. It is suitable for moderate power applications such as small electric vehicles, energy storage systems, and backup power solutions. The 8S 40A BMS LFP JBD offers comprehensive protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and efficient operation of the battery. Additionally, the HP08S001 model includes cell balancing to maintain consistent voltage across all cells, optimizing battery performance and extending its lifespan.
Description
