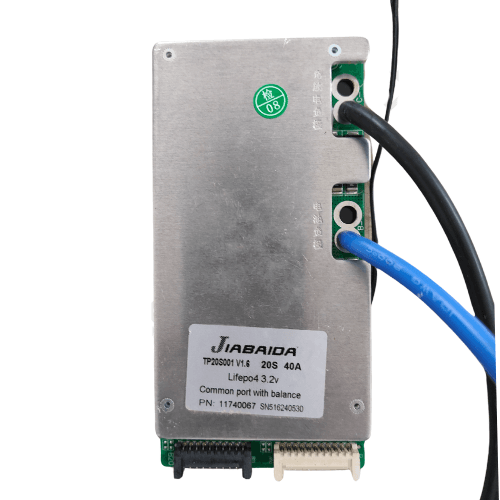

20S 40AMP BMS LFP JBD (TP20S001) (732e)

Price range: ₹1,840.00 through ₹2,425.00

  • Cell specifications: 20 strings of lithium iron batteries
  • Interface type: Charge and discharge are both at the same port
  • charging voltage: 3.55V*Number of strings
  • Cell voltage range: 2.3~3.75V
  • Continuous charging current: current): 40A
  • Continuous discharging current: 40A
  • Consumption of running: ≤100uA
    -Circuit resistance: ≤10mR
  • Operating temperature: –15°C~70°C

20S 40AMP BMS LFP JBD (TP20S001) (732e) is a Hardware protection board scheme specially designed for 16-20 strings of lithium battery packs. The protection parameters are fixed by the component parameters.

Clear
Compare
Add to wishlist
SKU: lfp-20s-40a-jbd-tp20s001-732e Category: Tags: , , , ,
Description
  • Cell specifications: 20 strings of lithium iron batteries
  • Interface type: Charge and discharge are both at the same port
  • charging voltage: 3.55V*Number of strings
  • Cell voltage range: 2.3~3.75V
  • Continuous charging current: current): 40A
  • Continuous discharging current: 40A
  • Consumption of running: ≤100uA
    -Circuit resistance: ≤10mR
  • Operating temperature: –15°C~70°C

20S 40AMP BMS LFP JBD (TP20S001) (732e) is a Hardware protection board scheme specially designed for 16-20 strings of lithium battery packs. The protection parameters are fixed by the component parameters.

Additional information
20s

40A, 50A, 60A
